32-38W Constant Current Dimmable Series
- Universal AC input/Full range
- Built-in active PFC function
- Protections: Short Circuit/Over Load/Over Voltage
- IP64 design for outdoor or indoor installations
- UL1310 Class 2 power unit
- Compliant with FCC Part 15 Class B
- 50,000 hours at 90°C maximum case temperature
- No flickering
- 0-10V dimmable
- 100% full load burn-in test
- 5 years warranty
Product Specifications
| Model Number* | Output Current (mA) | Input Voltage** (V) | Input Frequency (Hz) | Output Voltage (V) | Typical Output Power (W) | Typical Efficiency***(%) | Power Factor at 120V | Power Factor 277V | Dimming Method | Dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| RDU32CS100V38DA7 | 810 | 108-305 | 50/60 | 70-140 | 32 | 90 | 0.98 | 0.92 | 0-10V | 127 x 60.8 x 17.8 |
| RDU38CS100V38DA7 | 1000 | 108-305 | 50/60 | 50-109 | 38 | 90 | 0.98 | 0.92 | 0-10V | 127 x 60.8 x 17.8 |
*Rated input voltage is 120V to 277V certified with UL1310
**Typical Efficiency is measured at full load with 220V/50Hz as input voltage

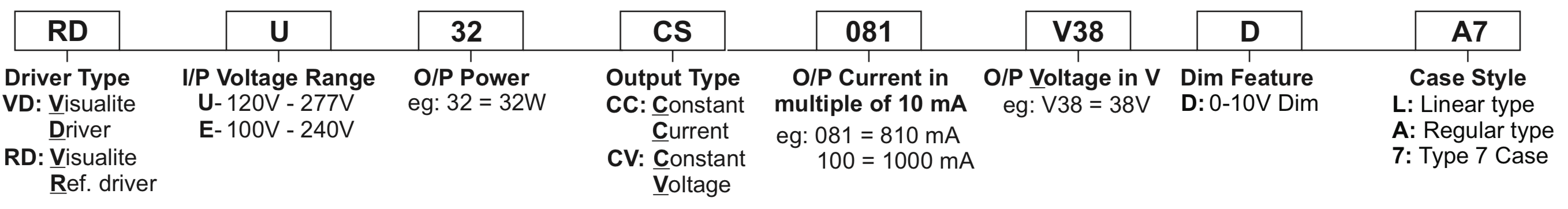

***Model Number description provides complete information about the driver. Example: RDU38CS100V38DA7
Additional information
| Application | Indoor, Outdoor |
|---|---|
| Protections | Over Load, Over Voltage, Short Circuit |
| Special Features | Attachable photosensor, Selectable current |
